Turf Aerator Hollow Top Eject Tines Durable 7/8MTx5.75L 86-9720 manufacturer,Turf Aerator Hollow Top Eject Tines Durable 7/8MTx5.75L 86-9720 factory,High quality Turf Aerator Hollow Top Eject Tines Durable 7/8MTx5.75L 86-9720

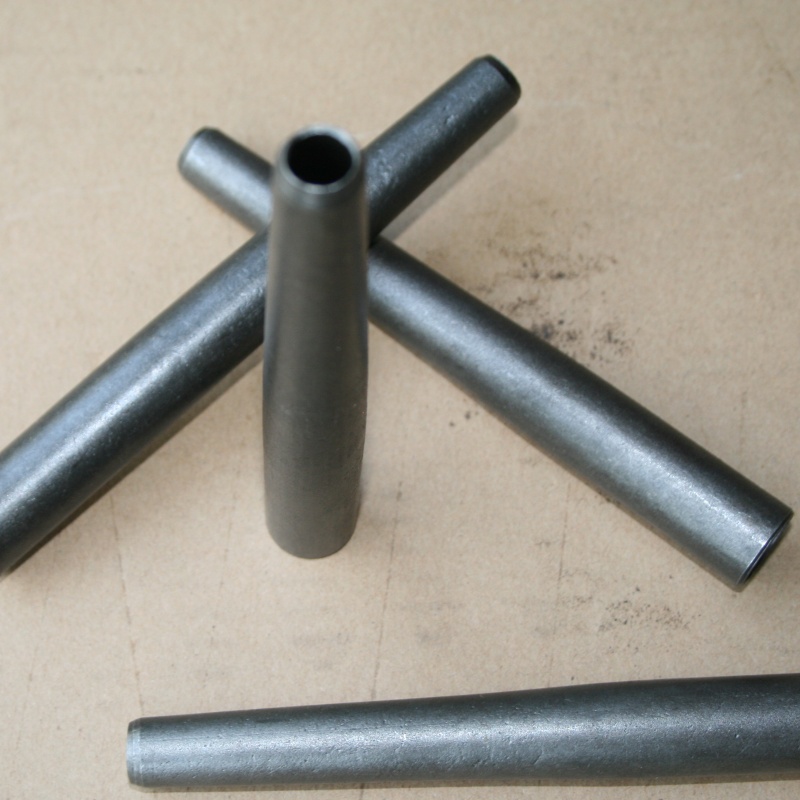

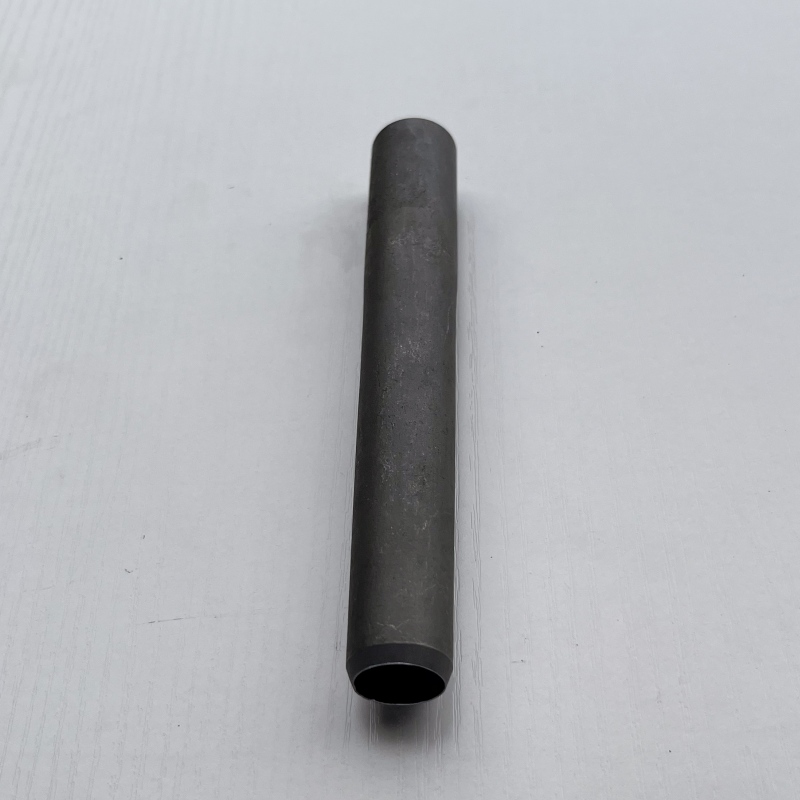

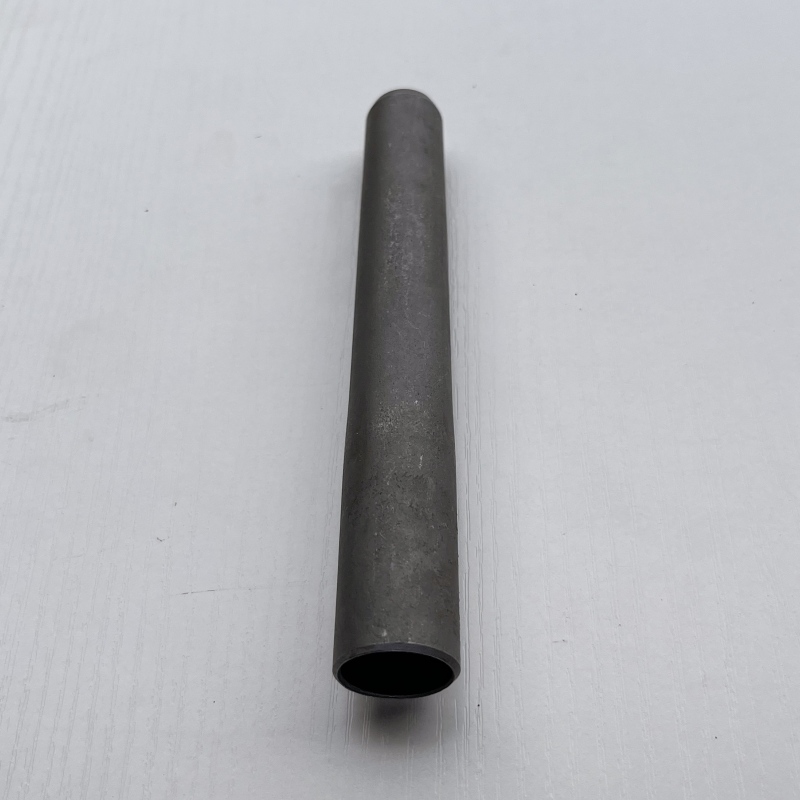

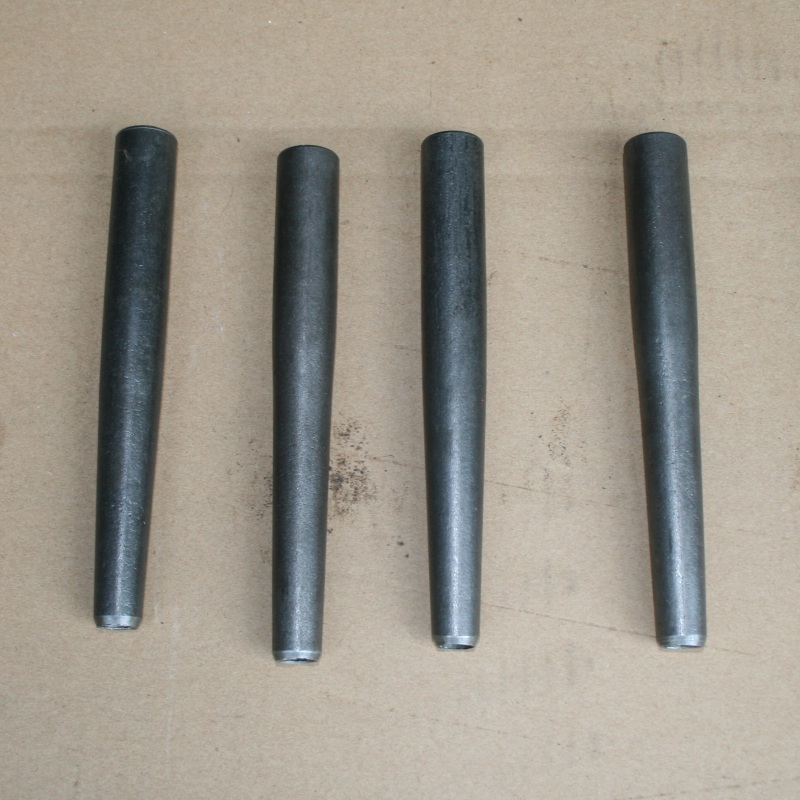

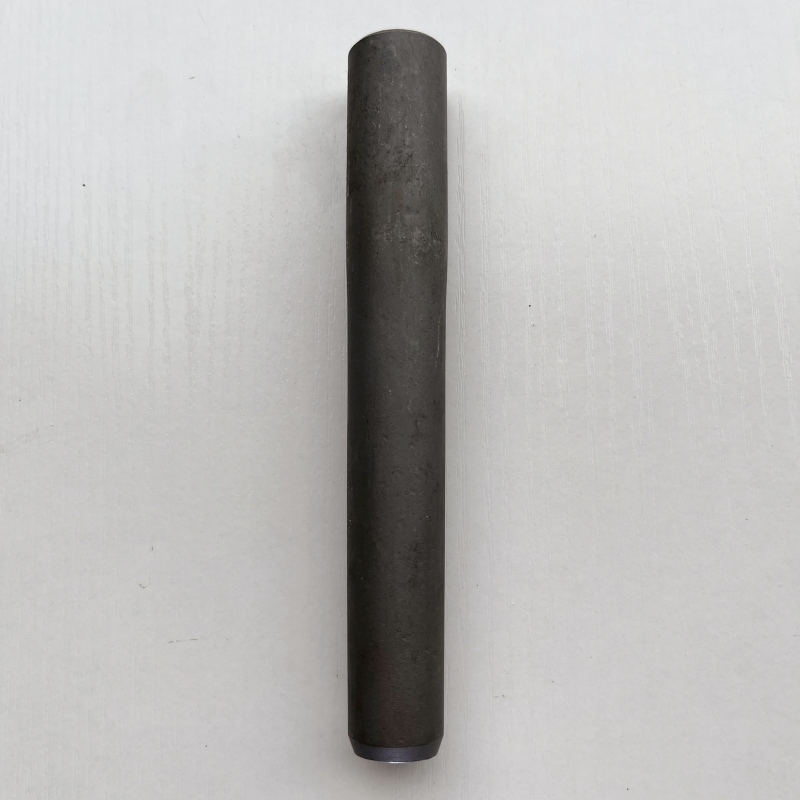

Turf Aerator Hollow Top Eject Tines Durable 7/8MTx5.75L 86-9720

TINE-HOLLOW, 3/4 X 5.75 [.875 MNT]

Suitable for various types Turf Aerator,Greens Aerator,Fairway Aerator,coring Aerator.

Part No. :

LF86-9720

Replaces :

TORO 86-9720

Mount Size :

7/8 Inch (22.2mm)

Length :

5.75 Inch (146mm)

Inside Dia. :

.60 Inch (15,2mm)

Outside Dia. :

.75 Inch (19mm)

Wall Thickness :

.065 Inch (1,7mm)

Product categories

Reels
- TORO
- JOHN DEERE
- JACOBSEN
Bedknives
Aerating Tines
Verti-Cut Blades
Rotary Mower Blades
Edger Blades
Brush Cutter Blades
Flail Blades
Sod Harvester Blades
Hedge Trimmer Blades
Parts

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Golf Turf Aerator Tines Lawn Aerating Tines Replacement
Read More
Reel Mower Blade Golf Greens Reel 11 Blade 21x5 Inch 137-8512
Read More
Bedknife Golf Greens Fairway Reel Mower Blade 21 Inch Standard Replaces 93-4262
Read More
Lawn Verti-Cut Blade Turf Groomer Grass Dethatcher De-Thatching Blade Replacement
Read More
Golf Lawn Mower Rotary Blade Replacement
Read More
golf turf sod cutter Blade Replacement
Read More
Universal Brush Cutter Blade Trimmer Weed Eater Blades Replacement
Read More
Grooved Disc Front Roller Kit 26 Inch Replaces AMT2968 BM25318
Read More

Hollow and Max Hollow						Max
Mount	Length	Core Dia. (ID)	OD	Wall Thickness	Part Number	Part Number
3/4" (19,0 mm)	4.75"(120,6 mm)	.28" (7,1 mm)	.46"(11,7 mm)	.058"(1,5 mm)	108-9128	108-9139
3/4" (19,0 mm)	4.75"(120,6 mm)	.41"(10,3 mm)	.56"(14,2 mm)	.058"(1,5 mm)	108-9129	108-9141
3/4" (19,0 mm)	4.75"(120,6 mm)	53"(13,4 mm)	.66"(16,8 mm)	.058"(1,5 mm)	108-9130	108-9143
3/4" (19,0 mm)	5.75"(146,0 mm)	.28"(7,1 mm)	.46"(11,7 mm)	.058"(1,5 mm)	108-9132	–
3/4" (19,0 mm)	5.75"(146,0 mm)	.41"(10,3 mm)	.56"(14,2 mm)	.058"(1,5 mm)	108-9133	108-9147
3/4" (19,0 mm)	5.75"(146,0 mm)	.53"(13,4 mm)	.66"(16,8 mm)	.058"(1,5 mm)	108-9134	108-9149
3/4" (19,0 mm)	6.50"(165,1 mm)	.28"(7,1 mm)	.46"(11,7 mm)	.058"(1,5 mm)	108-9138	108-9135
3/4" (19,0 mm)	6.50"(165,1 mm)	.41"(10,3 mm)	.56"(14,2 mm)	.058"(1,5 mm)	108-9136	108-9151
3/4" (19,0 mm)	6.50"(165,1 mm)	.53"(13,4 mm)	.66"(16,8 mm)	.058"(1,5 mm)	108-9137	–
7/8" (22,2 mm)	4.75"(120.6 mm)	.51"(13,0 mm)	.66"(16,8 mm)	.058"(1,5 mm)	108-9190	–
7/8" (22,2 mm)	4.75"(120,6 mm)	.63(16,0 mm)	.76"(19,3 mm)	.058"(1,5 mm)	108-9191	–
7/8" (22,2 mm)	5.75"(146,0 mm)	.51"(13,0 mm)	.66"(16,8 mm)	.058"(1,5 mm)	108-9192	–
7/8" (22,2 mm)	5.75"(146,0 mm)	.63"(16,0 mm)	.76"(19,3 mm)	.058"(1,5 mm)	108-9193	–

Hollow Extended Taper and Max Extended Taper						Max
Mount	Length	Core Dia. (ID)	OD	Wall Thickness	Part Number	Part Number
3/4"(19,0 mm)	5.75"(146,0 mm)	.47"(11,9 mm)	.68"(17,3 mm)	.058"(1,5 mm)	114-0553	–
3/4"(19,0 mm)	5.75"(146,0 mm)	.53"(13,4 mm)	.66"(16,8 mm)	.058"(1,5 mm)	114-0551	114-0553
3/4"(19,0 mm)	6.50"(165,1 mm)	.53"(13,4 mm)	.66"(16,8 mm)	.058"(1,5 mm)	114-0550	–

Classic Hollow						Max
Mount	Length	Core Dia. (ID)	OD	Wall Thickness	Part Number	Part Number
3/4" (19,0 mm)	4.75"(120,6 mm)	.40"(10,2 mm)	.50"(127 mm)	.049"(1,2 mm)	66-9140	–
3/4" (19,0 mm)	4.75"(120,6 mm)	.50"(12,7 mm)	.63"(15,9 mm)	.049"(1,2 mm)	59-3670	–
3/4" (19,0 mm)	5.75"(146,0 mm)	.51"(12,9 mm)	.63"(15,9 mm)	.058"(1,5 mm)	104-0984	–
3/4" (19,0 mm)	6.50"(165,1 mm)	.39"(9,9 mm)	.66"(16,8 mm)	.058"(1,5 mm)	105-1180	–
7/8" (22,2 mm)	4.75"(120,6 mm)	.60"(15,2 mm)	.75"(19,0 mm)	.065"(1,7 mm)	62-4600	–
7/8" (22,2 mm)	5.75"(146,0 mm)	.60"(15,2 mm)	.75"(19,0 mm)	.065"(1,7 mm)	86-9720	–

Core Size in. (mm)	Description in. (mm)	Mount in. (mm)	Length in. (mm)	Wall Thickness in. (mm)	Inside Diameter in. (mm)	Outside Diameter in. (mm)	Type	Deere Part Number
1/4 (6.4)	1/4 (6.4) Hollow Top Eject	3/4 (19.1)	6.5 (165.1)	0.058 (1.47)	0.280 (7.11)	0.430 (10.92)	Standard	TCU35248*
1/4 (6.4)	1/4 (6.4) Hollow Top Eject	3/4 (19.1)	6.5 (165.1)	0.058 (1.47)	0.280 (7.11)	0.430 (10.92)	Plus	TCU35249*
3/8 (9.5)	3/8 (9.5) Hollow Top Eject	3/4 (19.1)	6.0 (152.4)	0.058 (1.47)	0.324 (8.23)	0.471 (11.96)	Standard	TCU38355
			6.0 (152.4)	0.058 (1.47)	0.324 (8.23)	0.471 (11.96)	Plus	TCU38356
			6.5 (165.1)	0.058 (1.47)	0.323 (8.20)	0.463 (11.76)	Ultra	TCU35250*
1/2 (12.7)	1/2 (12.7) Hollow Top Eject	3/4 (19.1)	6.0 (152.4)	0.065 (1.65)	0.388 (9.86)	0.556 (14.12)	Standard	TCU38359
			6.0 (152.4)	0.065 (1.65)	0.388 (9.86)	0.556 (14.12)	Plus	TCU38360
			6.5 (165.1)	0.065 (1.65)	0.388 (9.86)	0.556 (14.12)	Standard	TCU35258*
				0.065 (1.65)	0.388 (9.86)	0.556 (14.12)	Plus	TCU35259*
				0.058 (1.47)	0.423 (10.74)	0.563 (14.30)	Ultra	TCU35260*
5/8 (15.9)	5/8 (15.9) Hollow Top Eject	3/4 (19.1)	5.0 (127)	0.058 (1.47)	0.504 (12.80)	0.645 (16.38)	Plus	TCU35326
			5.0 (127)	0.058 (1.47)	0.502 (12.75)	0.643 (16.33)	Ultra	TCU35325
			6.0 (152.4)	0.058 (1.47)	0.505(12.83)	0.645 (16.38)	Standard	TCU38363
			6.0 (152.4)	0.058 (1.47)	0.505(12.83)	0.645 (16.38)	Plus	TCU38364
			6.5 (165.1)	0.058 (1.47)	0.505(12.83)	0.645 (16.38)	Standard	TCU35321*
				0.058 (1.47)	0.505(12.83)	0.645 (16.38)	Plus	TCU35322*
				0.058 (1.47)	0.503 (12.78)	0.644 (16.36)	Ultra	TCU35323*
3/4 (19.1)	3/4 (19.1) Hollow Top Eject	7/8 (22.2)	6.0 (152.4)	0.058 (1.47)	0.609 (15.47)	0.750 (19.05)	Standard	TCU35341
				0.095 (2.41)	0.508 (12.90)	0.740 (18.79)	Plus	TCU38367
				0.058 (1.47)	0.553 (14.04)	0.753(19.13)	Ultra	TCU38368
			6.0 (152.4)	0.095 (2.41)	0.508 (12.90)	0.740 (18.80)	Plus	TCU35344*
				0.058 (1.47)	0.535 (13.59)	0.753 (19.13)	Ultra	TCU35345*
