Turf Aerator Extended Deep Solid Needle Tines 12mmMTx361.9L Replaces SGS12500

toro aerator tines
toro procore tines
lawn corer tines
lawn coring tines
plug aerator replacement tines
solid tine aeration

Turf Aerator Extended Deep Solid Needle Tines 12mmMTx361.9L Replaces SGS12500

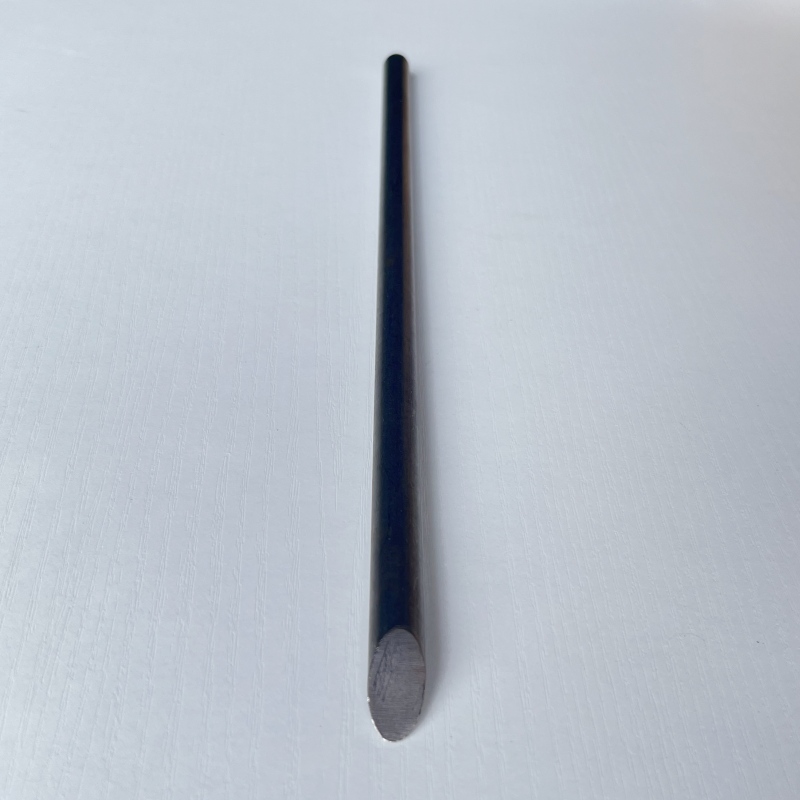

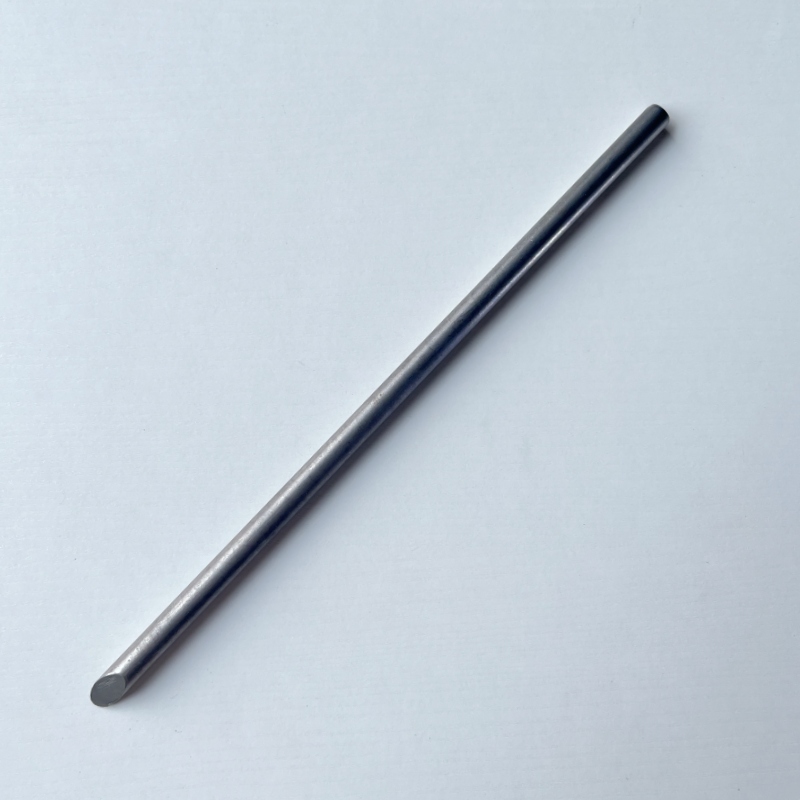

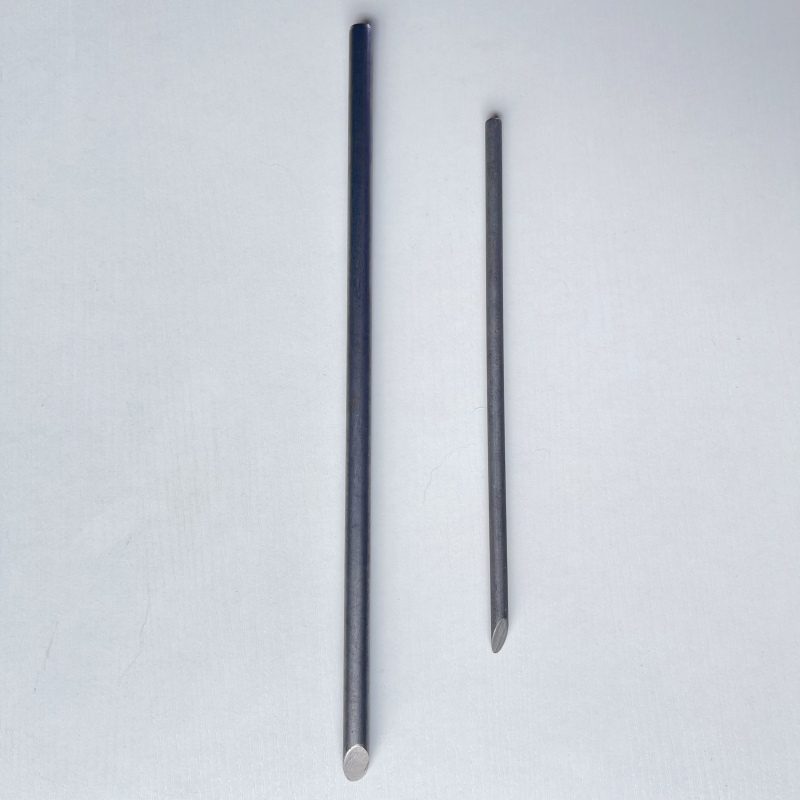

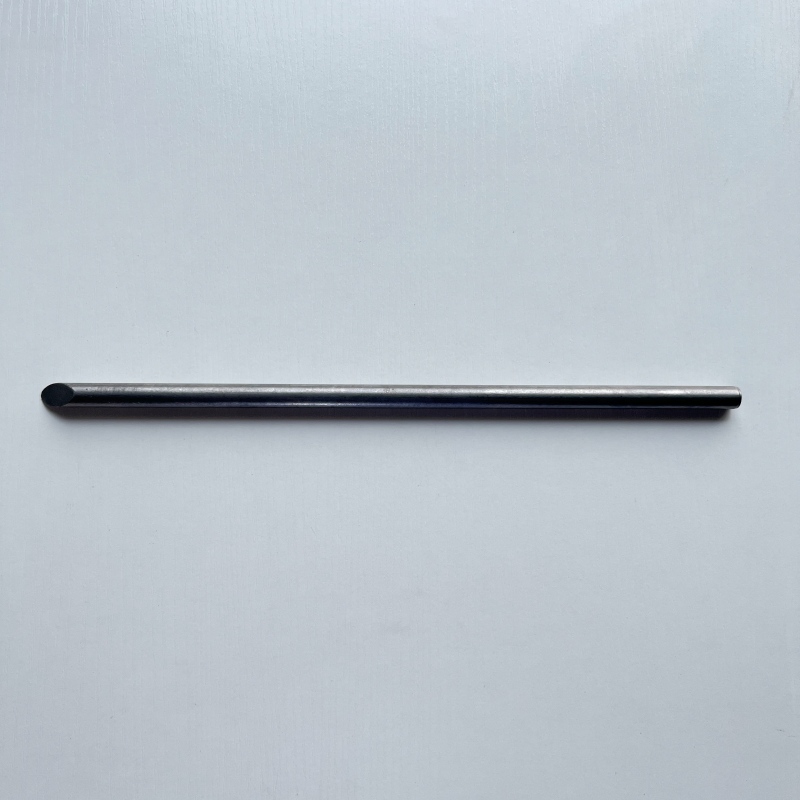

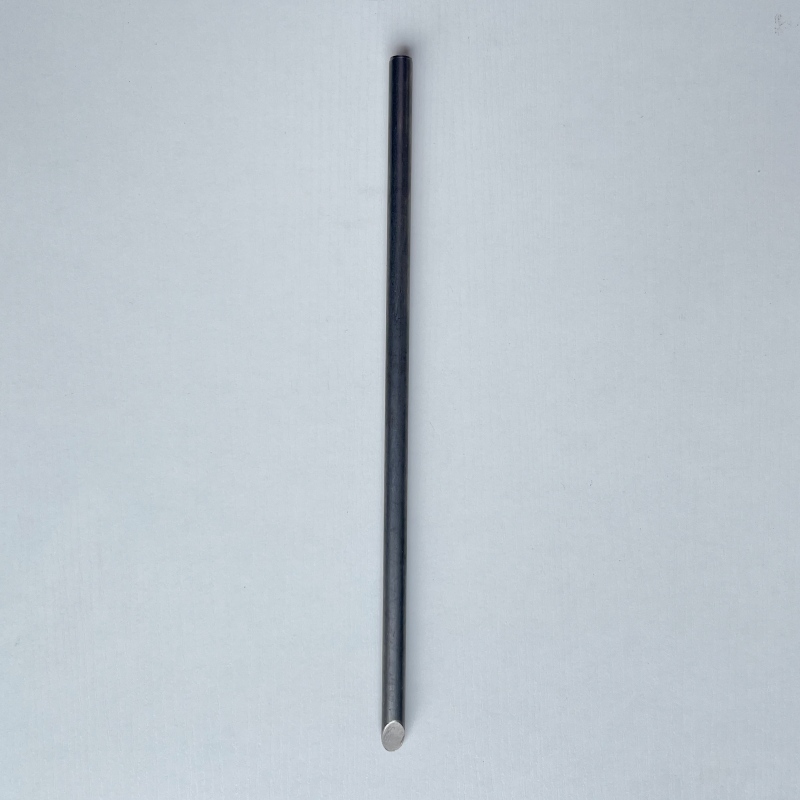

Durable Needle Tines _ 12mm MT X 361.9mm L X 12mm OD

Suitable for various types Turf Aerator,Greens Aerator,Fairway Aerator,coring Aerator.

  • Part No. :

    LF001069
  • Replaces :

    TORO SGS12500
  • Mount Size :

    .47 Inch (12mm)
  • Length :

    14.25 Inch (361.9mm)
  • Inside Dia. :

    -
  • Outside Dia. :

    .47 Inch (12mm)
  • Wall Thickness :

    -




Material: 40Cr

Process: heat treatment,HRC45-53

Place of Origin: Anhui,China


Fits Models:

Toro ProCore SR




toro aerator tines



toro procore tines



toro 648 tines



lawn corer tines



lawn coring tines




TORO Tines Chart:

NEEDLE TINE Max
Mount Length Core Dia. (ID) OD Wall Thickness Part Number Part Number
Needle 6.43" (163,3 mm) 5,0 mm 100–3620
Needle 7.38" (187,5 mm) 8.0mm 100–3621
Needle 5.43" (137,9 mm) 5,0 mm 100–3319



Deep Tine Max
Mount Length Core Dia. (ID) OD Wall Thickness Part Number Part Number
5/16"(7,9 mm) 10.00"(254,0 mm) - .31"(7,9 mm) SGS08313
5/16"(7,9 mm) 8.50"(215,9 mm) - .31"(7,9 mm) SGS07313
12,0 mm 10.00"(254,0 mm) .56"(14,2 mm) .75"(19,0 mm) SGC10754
12,0 mm 10.00"(254,0 mm) .56"(14,2 mm) .75"(19,0 mm) SGC10755*
12,0 mm 10.00"(254,0 mm) .56"(14,2 mm) .81"(20,6 mm) SGC10813H
12,0 mm 10.75"(273,1 mm - .47"(12,0 mm) SGS10504
12,0 mm 12.25"(311,2 mm) - .47"(12,0 mm) SGS10500
12,0 mm 14.25"(361,9 mm) - .47"(12,0 mm) SGS12500
12.0 mm 16.25"(412,8 mm) - .47"(12,0 mm) SGS14500
12.0 mm 7.00"(177,8 mm) .52"(13,2 mm) .69"(17,4 mm) SGC07624
12,0 mm 7.00"(177,8 mm) .52"(13,2 mm) .69"(17,4 mm) SGC07625*
12,0 mm 7.00"(177,8 mm) .56"(14,2 mm) .81"(20,7 mm) SGC07754
12,0 mm 7.00"(177,8 mm) .56"(14,2 mm) .81"(20,7 mm) SGC07750*
12,0 mm 8.00"(203,2 mm) - .47" (12,0 mm) SGS08500
18,0 mm 10.00"(254,0 mm) .56"(14,2 mm) .75"(19,0 mm) SGC10750
18,0 mm 10.00"(254,0 mm) .74"(18,8 mm) 1.06"(26,9 mm) SGC10100H
18,0 mm 10.00"(254,0 mm) .76"(19,3 mm) 1.00"(25,4 mm) SGC10100S
18,0 mm 12.00"(304,8 mm) .94" (23,9 mm) 1.31"(33,3 mm) SGC12125
18,0 mm 12.25"(311,2 mm) - .71"(18,0 mm) SGS10750
18,0 mm 12.50"(317,5 mm) - .88"(22,2 mm) SGS10875
18,0 mm 14.00"(355,6 mm) - .88"(22,2 mm) SGS12875
18,0 mm 14.25"(361,9 mm) - .71"(18,0 mm) SGS12750
18,0 mm 16.00"(406,4 mm) - .88"(22,2 mm) SGS14875
18,0 mm 16.25"(412,8 mm) - .71"(18,0 mm) SGS14750
18,0 mm 8.00"(203,2 mm) .74"(18,8 mm) 1.06"(26,9 mm) SGC08100H
18,0 mm 8.00"(203,2 mm) .94"(239 mm) 1.31"(33,3 mm) SGC08125
3/8"(9,5 mm) 10.75"(273,1 mm) - .38"(9,5 mm) SGS10374
3/8"(9,5 mm) 12.25"(311,2 mm) - .38"(9,5 mm) SGS10375
3/8"(9,5 mm) 5.50"(139,7 mm) .38"(9,5 mm) .50"(12,7 mm) SGC05550
3/8"(9,5 mm) 9.00"(228,6 mm) - .38"(9,5 mm) SGS08375
7/8"(22,2 mm) 12.00"(304,8 mm) .94"(23,9 mm) 1.31"(33,3 mm) SGC12123
7/8"(22,2 mm) 12.50"(317,5 mm) - .88"(22,2 mm) SGS10876
7/8"(22,2 mm) 14.00"(355,6 mm) - .88"(22,2 mm) SGS12876
7/8"(22,2 mm) 17.88"(454,2 mm) - 1.00"(25,4 mm) SGS16100
7/8"(22,2 mm) 8.00"(203,2 mm) .94"(23,9 mm) 1.31"(33,3 mm) SGC08123






John Deere Tines Chart:

Core Size in. (mm) Description in. (mm) Mount in. (mm) Length in. (mm) Wall Thickness in. (mm) Inside Diameter in. (mm) Outside Diameter in. (mm) Type Deere Part Number
(5 mm) 5 mm Needle “L” mounting 3/8 (9.5) 5.0 (127) n/a n/a 0.197 (5.00) Standard TCU15712
  5 mm Needle 3/8 (9.5) 6.0 (152.4) n/a n/a 0.197 (5.00) Plus TCU35368
(8 mm) 8 mm Needle “L” mounting 3/8 (9.5) 5.0 (127) n/a n/a 0.315 (8.00) Standard TCU15726
  8 mm Needle 3/8 (9.5) 6.0 (152.4) n/a n/a 0.315 (8.00) Plus TCU35370
