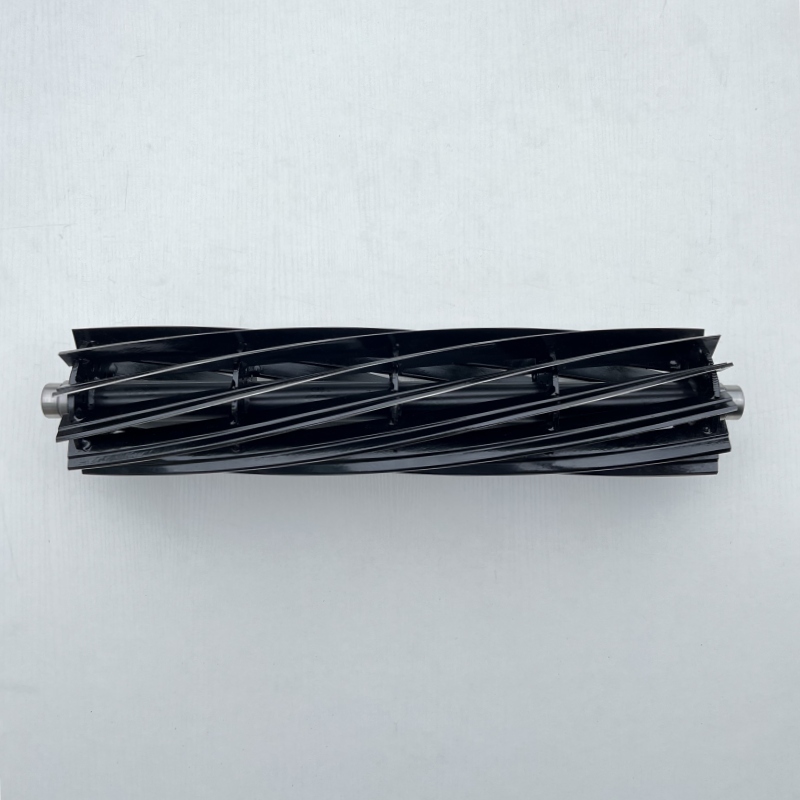

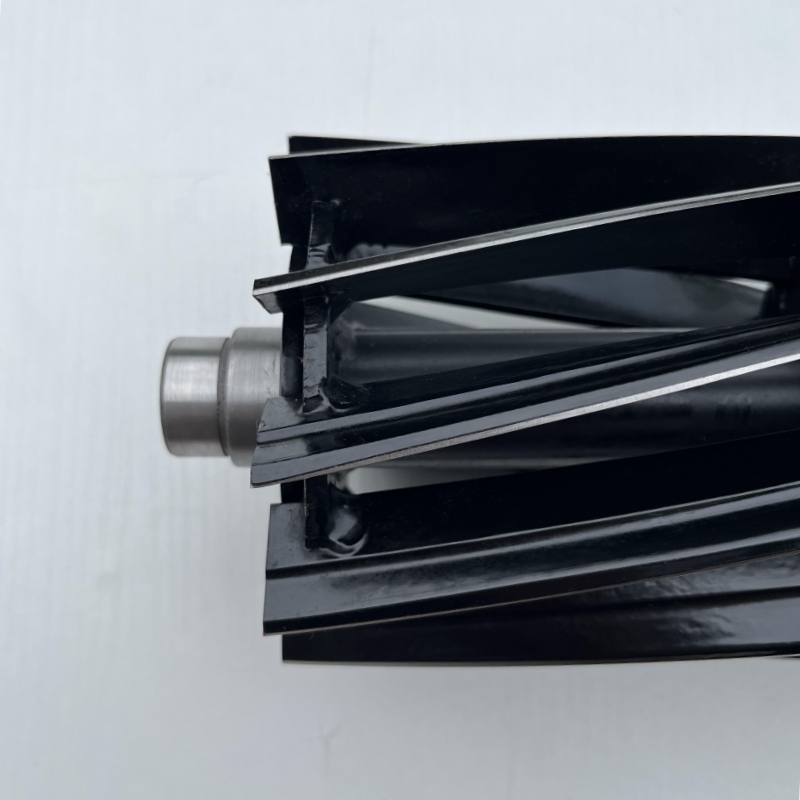

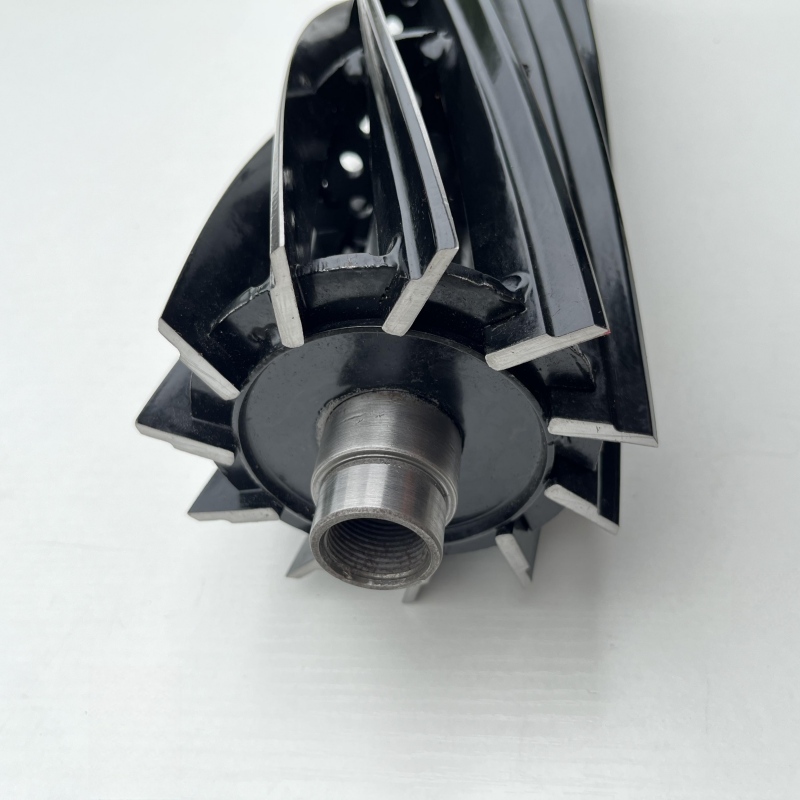

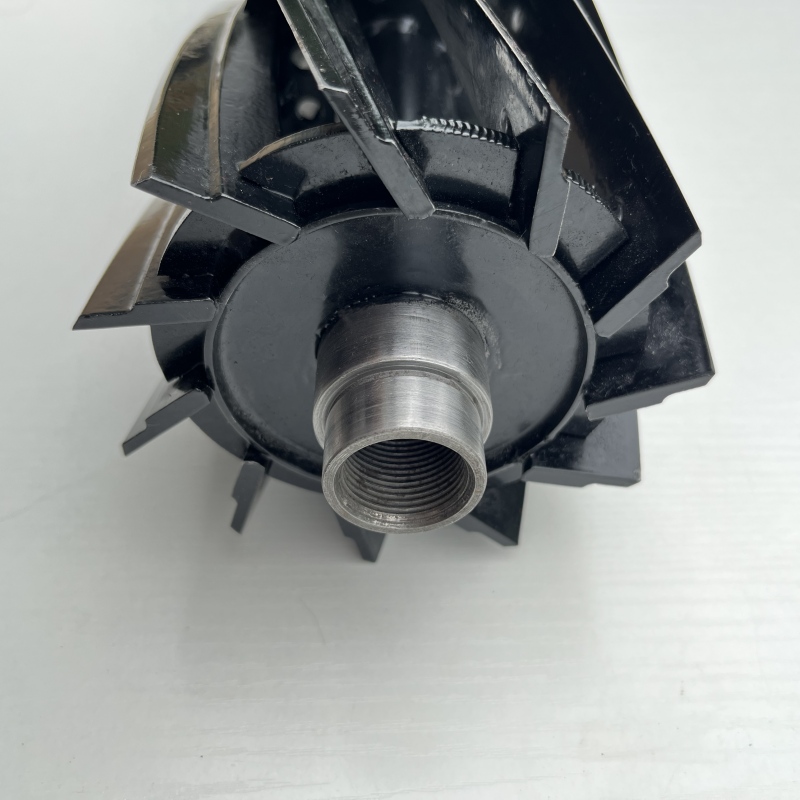

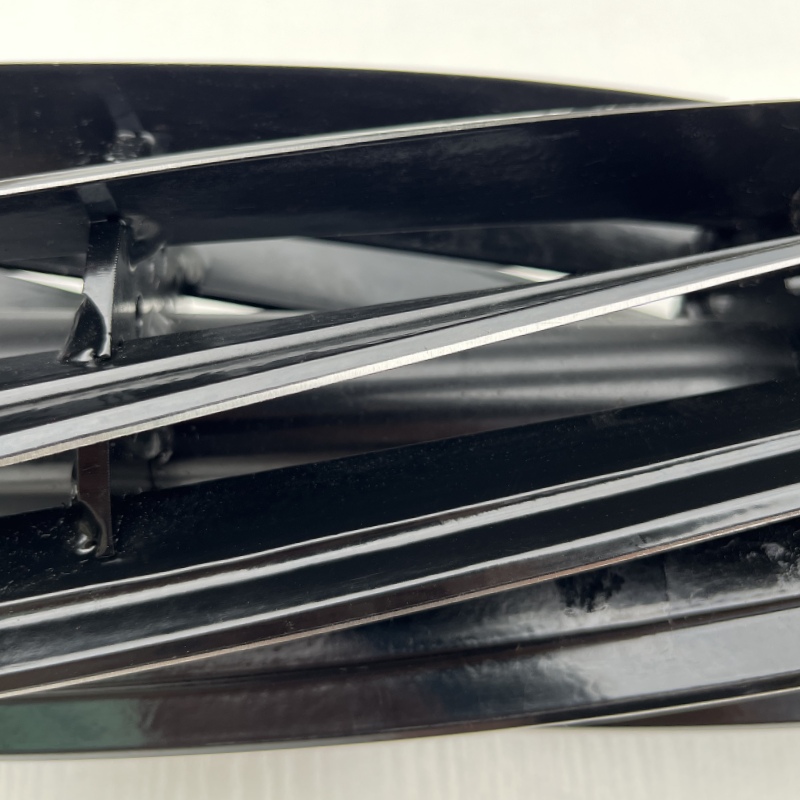

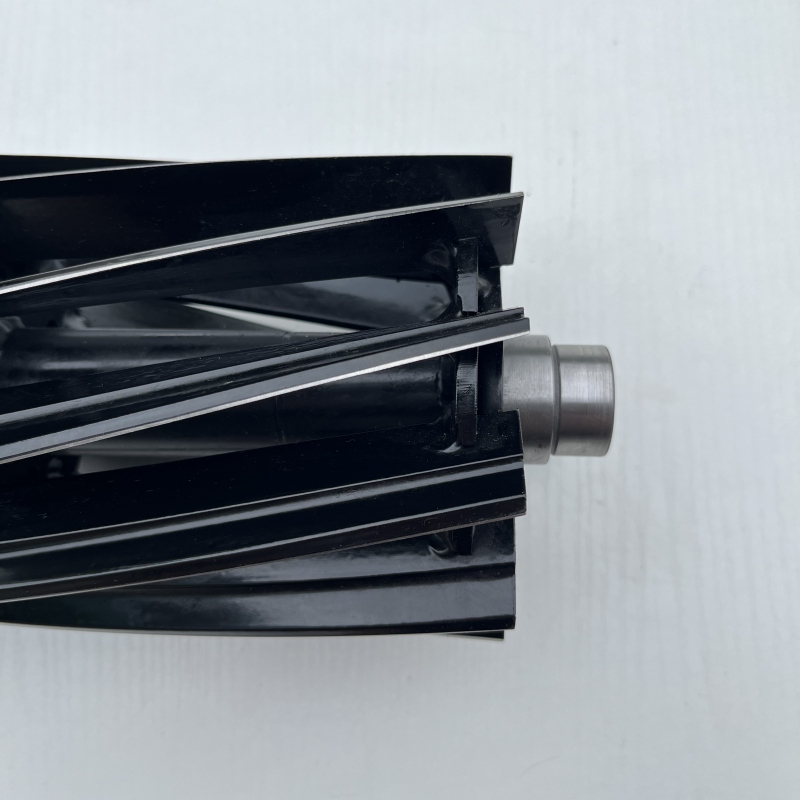

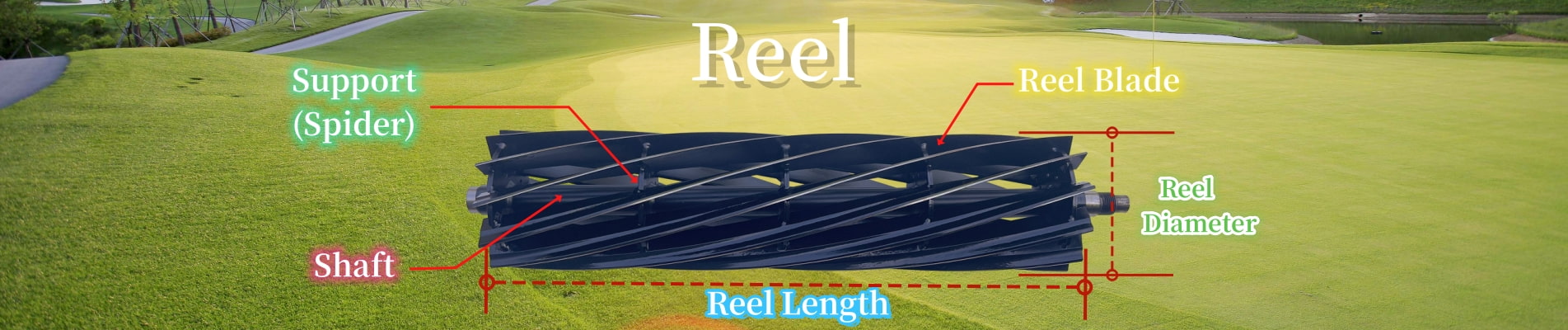

REEL+ ASM [ES,LOW DRAG (21),11 BLD-SRVC]
Suitable for various types Golf Greens Fairway Tournament Reel Mower Blade,Lawn Mower Reel Blade.
Part No. :
LF001502Replaces :
TORO 137-8512Number of blades :
11 BladeReel Length :
21 Inch (533 mm)Reel Diameter :
5 Inch (127 mm)Cutting Unit Model :
04251, 04833 ES, 04290 ES, 04614, 04619, 04653 ES, 04654 ES
Material: 65Mn
Process: heat treatment,HRC50-54
Place of Origin: Anhui,China
Fits Models:
| Toro Greensmaster 1021 | Toro Greensmaster TriFlex 3400 |
| Toro Greensmaster 3050 | Toro Greensmaster TriFlex 3420 |
| Toro Greensmaster 3120 | Toro Greensmaster eFlex 2100 |
| Toro Greensmaster 3150-Q | Toro Greensmaster eFlex 2120 |
| Toro Greensmaster 3250-D | Toro Greensmaster Flex 2100 |
| Toro Greensmaster TriFlex 3300 | Toro Greensmaster Flex 2120 |
| Toro Greensmaster TriFlex 3320 | Toro Greensmaster Flex 1021 |
| Toro Greensmaster eTriFlex 3360 | Toro Greensmaster e1021 |
| Toro Greensmaster eTriFlex 3370 | Toro Greensmaster eFlex 1021 |
| TORO Service Reel Reference Chart - Fairway | |||||||||||
| Reelmaster Unit | Reel Length | Reel Diameter | Service Limit/Life | Cutting Unit Model | Reels+™ | EdgeSeries (ES) Reels+™ | |||||
| 5-Blade | 7-Blade | 8-Blade | 11-Blade | 5-Blade | 8-Blade | 11-Blade | |||||
| 3550 | 18” (457 mm) |
5” (127 mm) |
4.5” (114 mm) |
03911** 03480** |
137-8402 RR | 137-8406 RR |
|||||
| 03485ES | |||||||||||
| 03912** 03481** |
137-8403 RR | 137-8407 FSR |
|||||||||
| 03486ES | 137-8407 FSR (137-8409 RR Service Only) |
||||||||||
| 3550 - Rear Only 3555 5010-H 5410 Low-drag DPA Units (Aluminum Side Plates) |
22” (559 mm) |
22” (559 mm) |
4.5” (114 mm) |
03913** 03482** |
137-8412 RR | 137-8426 RR |
|||||
| 03634 03487ES 03621ES |
|||||||||||
| 03483** | 131-3204* RR | 137-8413 RR | |||||||||
| 03635 03488ES 03623ES |
137-8447 FSR | ||||||||||
| 03489 ES 03624 ES |
137-8429 RR | ||||||||||
| 3575 5010-H 5510 / 5610 Low-drag DPA Units (Aluminum Side Plates) |
22” (559 mm) |
7” (178 mm) |
6.6” (165 mm) |
03638 ES | 133-8205* RR Service Only |
137-8445 RR | |||||
| 03639 ES | 137-8446 FSR |
||||||||||
| 03641 ES | 137-8447 FSR | ||||||||||
| 03643 ES | 137-8455 RR | ||||||||||
| 5210 5410 DPA Units (Red Side Plates) |
22” (559 mm) |
22” (559 mm) |
4.5” (114 mm) |
03661 03694 |
137-8416 RR | 137-8422 RR | |||||
| 03695 | 137-8417 RR | 137-8423 FSR | |||||||||
| 5510 5610 6500 6700 DPA Units (Red Side Plates) |
22” (559 mm) |
7” (178 mm) |
6.6” (168 mm) |
03681 03863 03696 03698 |
137-8432 RR | 137-8437 RR Service Only |
137-8438 RR |
||||
| 03864 03682 03697 03699 |
137-8433 RR | 137-8439 FSR |
|||||||||
| 03693 ES | |||||||||||
| 3100 7000 Low-drag DPA Units (Aluminum Side Plates) |
27” (686 mm) |
7” (178 mm) |
6.6” (168 mm) |
03188 ES | 137-8469 RR |
||||||
| 03189 ES 03192 ES 03721 ES |
137-8470 RR |
||||||||||
| 03190 ES 03722 ES |
133-8278* RR |
||||||||||
| 32” (813 mm) |
7” (178 mm) |
6.6” (168 mm) |
03191 ES 03727 ES |
137-8482 RR Service Only |
137-8483 RR |
||||||
| 3100 7000 DPA Units (Red Side Plates) |
27” (686 mm) |
7” (178 mm) |
6.6” (168 mm) |
03180 | 137-8459 RR |
||||||
| 03710 03181 |
137-8460 RR |
137-8464 RR |
|||||||||
| 03183 03711 |
137-8461 RR |
133-8271* RR |
|||||||||
| 32” (813 mm) |
7” (178 mm) |
6.6” (168 mm) |
03182 03712 |
137-8476 Service Only |
137-8477 RR |
133-8273* RR |
|||||
| 5 7 11 TDM (Turf Driven Mower) SPA Units |
30” (762 mm) |
8” (203 mm) |
7.6” (193 mm) |
01005 | 130-0075* RR |
||||||
| 01007 | 130-0071* RR |
||||||||||
| 01011 | 130-0081* RR |
||||||||||
| 5200 5300 5400 4 Bolt Units |
21” (533 mm) |
5” (127 mm) |
4.5” (114 mm) |
03527 | 130-0088* RR |
||||||
| 03506 03509 03528 |
130-0093* RR |
||||||||||
| 6500 6700 SPA Units |
22” (559 mm) |
7” (178 mm) |
6.6” (168 mm) |
03860 | 137-8451 RR |
||||||
| 03861 | 137-8452 RR |
||||||||||
| 03862 | 137-8453 RR |
||||||||||
| 1.) Reel blade relief grind angle for all reels: 30° +/- 5°*Reels+ / EdgeSeries Reels+ not available **Thinner Greens blade RR: Radial Reel FSR: Forward Swept Reel 2.) Fairway relief grinding required when land width is greater than 0.125” (3.2 mm). 3.) Maximum allowed taper on all reels is 0.010” (0.2 mm). 08/03/2021 |
|||||||||||
| TORO Service Reel Reference Chart - Greens | |||||||||||
| Greensmaster Unit | Reel Length | Reel Diameter | Service Limit/Life | Cutting Unit Model | Reels+™ | EdgeSeries (ES) Reels+™ | |||||
| 5-Blade HD | 8-Blade | 11-Blade | 14-Blade | 8-Blade | 11-Blade | 14-Blade | |||||
| Flex & eFlex 1800 / 1820 (2012 & newer) GR 1018 |
18” (457 mm) |
5” (127 mm) |
4.5” (114 mm) |
04253 | 127-2164* | 137-8522 | |||||
| 04254 | 127-2165* | 137-8523 | |||||||||
| 04289 ES 04823 ES |
137-8522 | ||||||||||
| 04291 ES 04824 ES |
137-8523 | ||||||||||
| Flex 18 (2011 & older) |
18” (457 mm) |
5” (127 mm) |
4.5” (114 mm) |
04206 | 127-2156* | ||||||
| 04207 | 137-8566* | ||||||||||
| 800 Integral Cutting Unit |
18” (457 mm) |
5” (127 mm) |
4.5” (114 mm) |
04054 ES | 127-2160* Service Only |
132-7353* Service 132-7354* |
132-7354* | ||||
| Flex & eFlex 2100 / 2120 (2012 & newer) GR 1021 |
21” (533 mm) |
5” (127 mm) |
4.5” (114 mm) |
04832 ES | 137-8511 | ||||||
| 04251 04833 ES 04290 ES |
137-8512 | ||||||||||
| 04252 04834 ES 04292 ES |
137-8513 | ||||||||||
| Flex 21 (2011 & older) |
21” (533 mm) |
5” (127 mm) |
4.5” (114 mm) |
04200 04202 |
127-2174* Service Only |
137-8570* | |||||
| 04208 | 137-8574* | ||||||||||
| 1000 / 1010 / 2000 Integral Cutting Unit |
21” (533 mm) |
5” (127 mm) |
4.5” (114 mm) |
04055 ES | 132-7312* | 132-7314* Service Only |
|||||
| 04034 04036 04052 04038 ES |
132-7313* | ||||||||||
| GR 1026 | 26” (660 mm) |
5” (127 mm) |
4.5” (114 mm) |
04842 ES | 138-5753 | ||||||
| 04843 ES | 138-5755 | ||||||||||
| 1600 / 1610 / 2600 Integral Cutting Unit |
26” (660 mm) |
5” (127 mm) |
4.5” (114 mm) |
04035 04060 04056 ES |
132-7361* | ||||||
| 04037 04039 ES |
132-7362* | ||||||||||
| 3000 / 3100 / 3200 / 3300 / 3400 Low Drag DPA Seal Cutting Unit (2012 & newer) |
21” (533 mm) |
5” (127 mm) |
4.5” (114 mm) |
04613 04618 04651 ES 04652 ES |
HD: 137-8517 Service Only |
137-8511 | |||||
| 04614 04619 04653 ES 04654 ES |
137-8512 | ||||||||||
| 04615 04624 04655 ES 04656 ES |
137-8513 | ||||||||||
| 3000 / 3100 / 3200 DPA Cutting Units (2011 & older) |
21” (533 mm) |
5” (127 mm) |
4.5” (114 mm) |
04610 | 131-2013* Service Only |
HD: 137-8505* Service Only |
137-8495* | ||||
| 04611 | 137-8496* | ||||||||||
| 04616 | 137-8497* | ||||||||||
| *Reels+ / EdgeSeries Reels+ not available HD: Heavy Duty ES: EdgeSeries Cutting Unit 08/03/2021 1.) Reel blade relief grind angle for all reels: 30°+/- 5° 2.) Relief grinding required when land width is greater than 0.100” (2.5 mm). 3.) Maximum allowed taper on all reels is 0.010” (0.2 mm). 4.) EdgeSeries Reels standard on 2016 models and newer |
|||||||||||
REEL+ ASM [ES,LOW DRAG (21),11 BLD-SRVC] Suitable for various types Golf Greens Fairway Tournament Reel Mower Blade,Lawn Mower Reel Blade.
Reel Blade Mower Reel, 10 Blade, 22 inch Suitable for various types Golf Greens Fairway Tournament Reel Mower Reel Blade,Lawn Mower Reel Blade.
Reel Blade EdgeSeries (ES) 11 Blade Reel ASM [GR (21) Service Suitable for various types Golf Greens Fairway Tournament Reel Mower Reel Blade,Lawn Mower Reel Blade.
Reel Blade 8 Blade Razor Series Radial 22 Inch x 7 Inch Suitable for various types Golf Greens Fairway Tournament Reel Mower Reel Blade,Lawn Mower Reel Blade.
Reel Blade Mower Reel, 7 Blade, 22 inch Suitable for various types Golf Greens Fairway Tournament Reel Mower Reel Blade,Lawn Mower Reel Blade.
Reel Blade Mower Reel, 11 Blade, 22 inch Suitable for various types Golf Greens Fairway Tournament Reel Mower Reel Blade,Lawn Mower Reel Blade.
Reel 7 Blade 22x5 Inch Left Hand (Opposite) Suitable for various types Golf Greens Fairway Tournament Reel Mower Reel Blade,Lawn Mower Reel Blade.
Mower Reel 11 Blade 22x5 Inch Left Hand (Opposite) Suitable for various types Golf Greens Fairway Tournament Reel Mower Reel Blade,Lawn Mower Reel Blade.
